Garment Packaging Zipper Bag Making Machine

Garment Packaging Zipper Bag Making Machine

Garment Packaging Zipper Bag Making Machine

the zipper bag making machine automatic fitting zipper, stable running, labor saving, high efficiency



Inquire Now

Machine Characteristics & Technical Parameters

  1. The zipper bag making machine is with Imported servo motor drive, imported PLC control, Stainless steel chassis shield, easy operation, quick and stable bag making.
  2. Simple and reliable mechanical transmission structure design, light and stable. Easy maintenance & operate.
  3. With EPC opening, folding pocket insertion, cutting edge, easy tear, punching, color tracking, automatic fitting the zipper, ultrasonic flattening, hot-cutting bag making.
  4. Pneumatic loading material roll, waste edge collection device, the whole machine is simple, beautiful and easy to operate.
  5. Cutting knife, water pressure plate is reversible, Cleaning is simple and quick in production.
  6. Horizontal fit design, beautiful and generous, simple and practical operation.
  7. The imported color tracking photocell eye make sure a accurate bag cutting.
  8. The zipper pull is full automatically installed to improve production efficiency. save labor cost. and is more stable and reliable
  9. Automatic alarm and shut down when machine is lack of material.

Technical Parameters



Model XBL-SS600 XBL-SS800 XBL-SS900 XBL-SS1000
Voltage Three phase four wire 380V Three phase four wire 380V Three phase four wire 380V Three phase four wire 380V
Total power 7.8KW 8.2KW 9KW 9.8KW
Average power 4.2KW 4.5KW 5.3KW 5.6KW
Effective bag making width(mm) 100~520 100~720 100~820 100~920
Effective bag making length(mm) 50~600 50~750 50~800 50~1000
Max speed (pcs/min) 10~120 10~120 10~100 10~90
Weight (KG) 1700 1820 2150 2450
Length 5800MM 6300MM 7500MM 8300MM
Width 1200MM 1400MM 1500MM 1600MM
Height 1800MM 1800MM 1900MM 2100MM





 Details Show

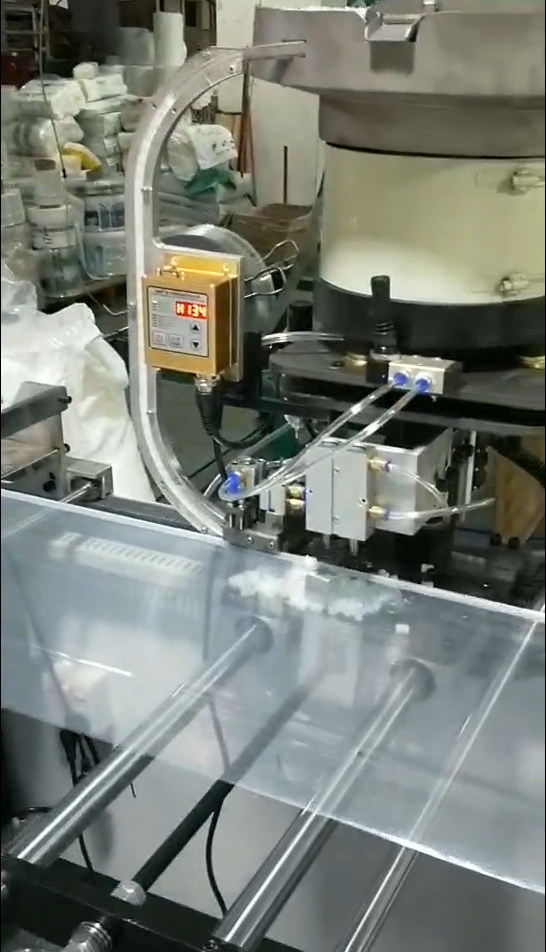

garment zipper bag
