Air Cushion Bag Forming Machine

1. The machine adopts computer control, electric eye color chasing, electrostatic cleaner, automatic counting, automatic constant temperature control and alarm.
2. The machine with 1180MM width film passing, mold die 480MM, bag making speed 30-70 meters. According to the thickness of the film. when one piece output : 18-28m/min ,  two pcs output : 50-58m/min.

 Technical Parameters

 Product Usage

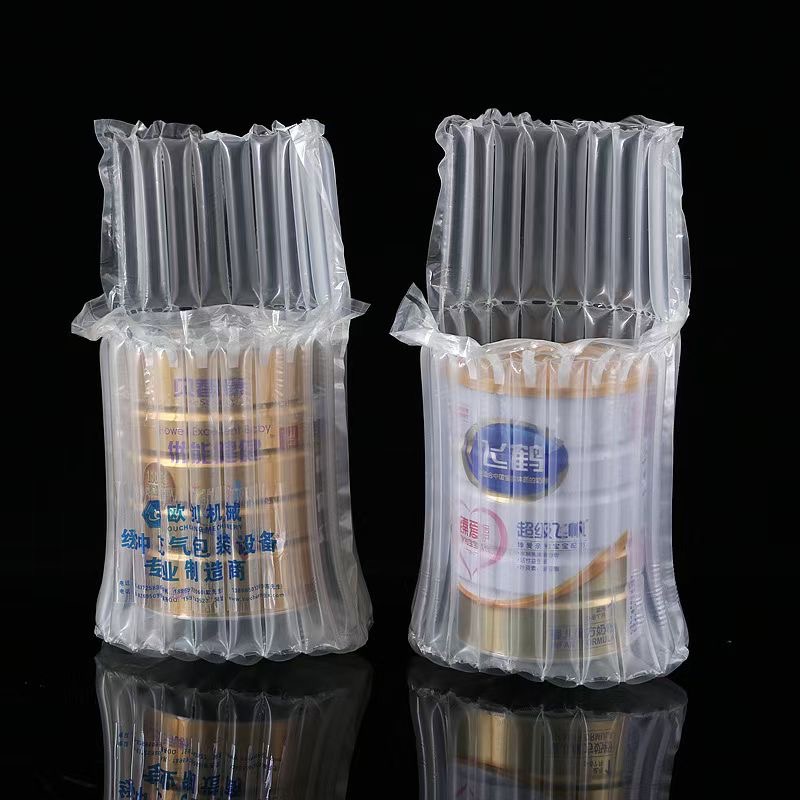

The Air column bag production line (double correction and double winding) is developed by our company according to the market demand. In the original design structure, double correction material feeding is added. lt is suitable for PE co-extrusion film and other materials roll to produce various Cushion air column bag, Air cushion, and Dunnage bag. The Finished products with the following characteristics:

（1）Low cost　　（2）Space saving　　（3）recyclability　　（4）reducing packaging process, saving manpower

（5）Pollution-free　（6）Providing long-term storage and transportation without leakage of anti-seismic protection.

（7）Simple packaging, improve protection, save freight, reduce storage costs　

（8）Improve the appearance of product packaging image, improve the quality of products.

 Machine Characteristics

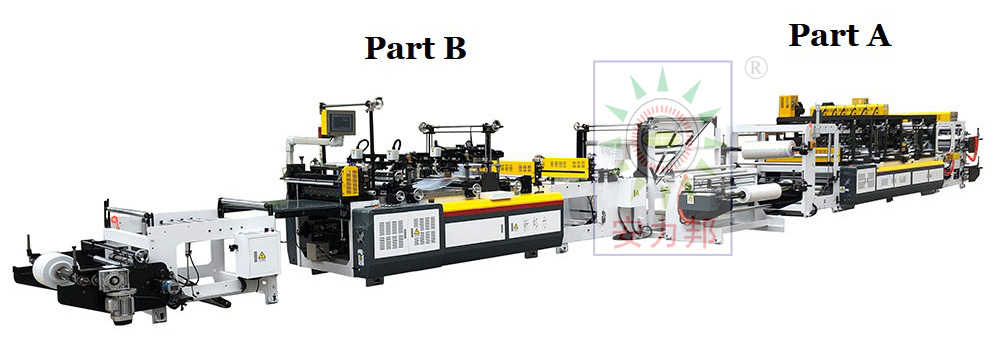

The Part A machine is the Air Cavity Forming Machine.

01. The main control circuit is controlled by imported PLC and frequency converter. lt has a good man-machine interface， and centralized, intuitive and convenient operation.

02. Any fixed length is ready-to-use, convenient and simple, photoelectric automatic tracking. accurate and stable.

03. The whole machine is controlled by frequency converter, The frequency conversion range is wide and the speed regulation range is wide, thus realizing stepless speed change, Ready-to-use, perfect match.

04. The double deviation rectification device consists of two sets of mechanisms, the upper film deviation rectification and the lower film deviation rectification, its function is to automatically track and correct the film deviation by photoelectric detection.

05. Reliable quality and durability: Our machines are manufactured with high-quality materials and components, with good quality and durability, able to maintain stable and reliable performance during long-term production runs.

06. Our Bottom Sealing Bag Making Machine Series provides reliable and efficient solutions for the packaging industry, helping customers meet the bottom sealing bag manufacturing needs of different types and specifications.

 Details Show

Double servo motors, double servo system 2.3KW : front end and back end :  1set for each end

The sealing device is firmly bonded, Hot sealing edge die 30MM / sealing air mouth die: 1set for each

Single and double winding station

Using motion control technology, from sheet material unwinding to cutting forming, are controlled by computer, the finished bags are well done in smooth ,strong and reliable.

                                              Physical demonstration of machine in factory
